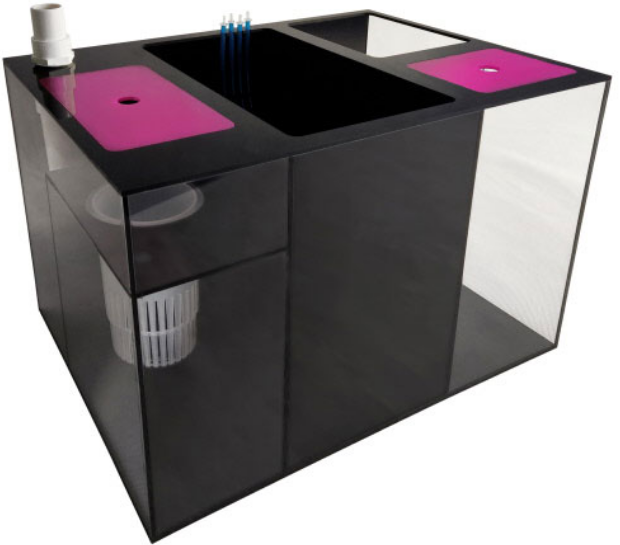

OCEAN SUMP 200

Ocean Sump 5 chamber filter systems include a variety of innovative features that greatly simplify connection, operation and ongoing maintenance and cleaning. Depending on the model, all Ocean Sump filter systems are equipped with either one or two filter vessels with matching mesh bags, which can be used for different filter materials such as zeolite or carbon filter media. All models are also equipped with electrode bases and connection lines, including hose connections for dosing solutions. The water level regulator allows you to adjust the water level of the skimmer chamber for the corresponding skimmer (protein skimmer) and thus optimize its performance. All models are also equipped with a refill tank and can therefore be easily retrofitted with an automatic refill system. The filter systems have a 32 mm or 50 mm inlet, depending on the model. Ocean Sump filter systems are available in three different sizes.

Ocean Sump filter system 5 chambers

• easy to install
• includes connection line
• adjustable water level skimmer chamber
• includes electrode holders
• includes connection lines for dosing pumps
• includes refill tank

Includes:

1 x Ocean Sump / 2 x Caps / 1 x filter canister / 1 x mesh bag

1 x Connection line (4 pcs) For dosing systems

1 x 32 mm inlet connection with OS200 / 1 x Instruction manual


Dimensions of the individual filter systems:

Chamber OS200

12.5 x 12cm / 2) 12.5 x 21cm / 3) 19 x 34cm / 4) 16 x 20cm / 5) 16 x 13.5cm


Technical data:

Connection line 1 x 32 mm / Dimensions 49.3 x 35 x 40 cm / Total volumes 70 l / Volume refill container 8 l / Suitable for aquariums up to 200L / Basic dimensions Skimmer chamber 19 x 34 cm / Skimmer chamber 19 x 34 cm

Maximum water level 25 cm / Filter container + mesh bag 1 pc.
